Services

Shop drawings for windows, doors and storefront.

Every set is drawn from the architectural plans and the manufacturer's current details, checked against the schedule, and delivered ready for submittal.

Packages

Pick the level of detail your project needs

Level 1

Product Details

For dealers and owners approving an order.

  • Elevations of every unit on the order
  • Manufacturer product details: head, sill, jamb and mullion
  • Sizes, operation and handing checked against the schedule
View example drawings (PDF) Quote Product Details
Level 2

Product + Install

For glazing subs and installers.

  • Everything in Product Details
  • Generic installation details for each unit type
  • Fastening, flashing and sealing shown at the frame
View example drawings (PDF) Quote Product + Install
Level 3

Full Submittal

For GCs and projects going to architect review.

  • Everything in Product + Install
  • The architect's wall and opening details from the plans, drawn into each install condition
  • A set built to answer the architect's review comments
View example drawings (PDF) Quote Full Submittal

Every package includes a first draft in 3–5 business days, two rounds of revisions, and a PDF set (DWG on request). Priced per project.

What I draw

Everything the submittal needs

01

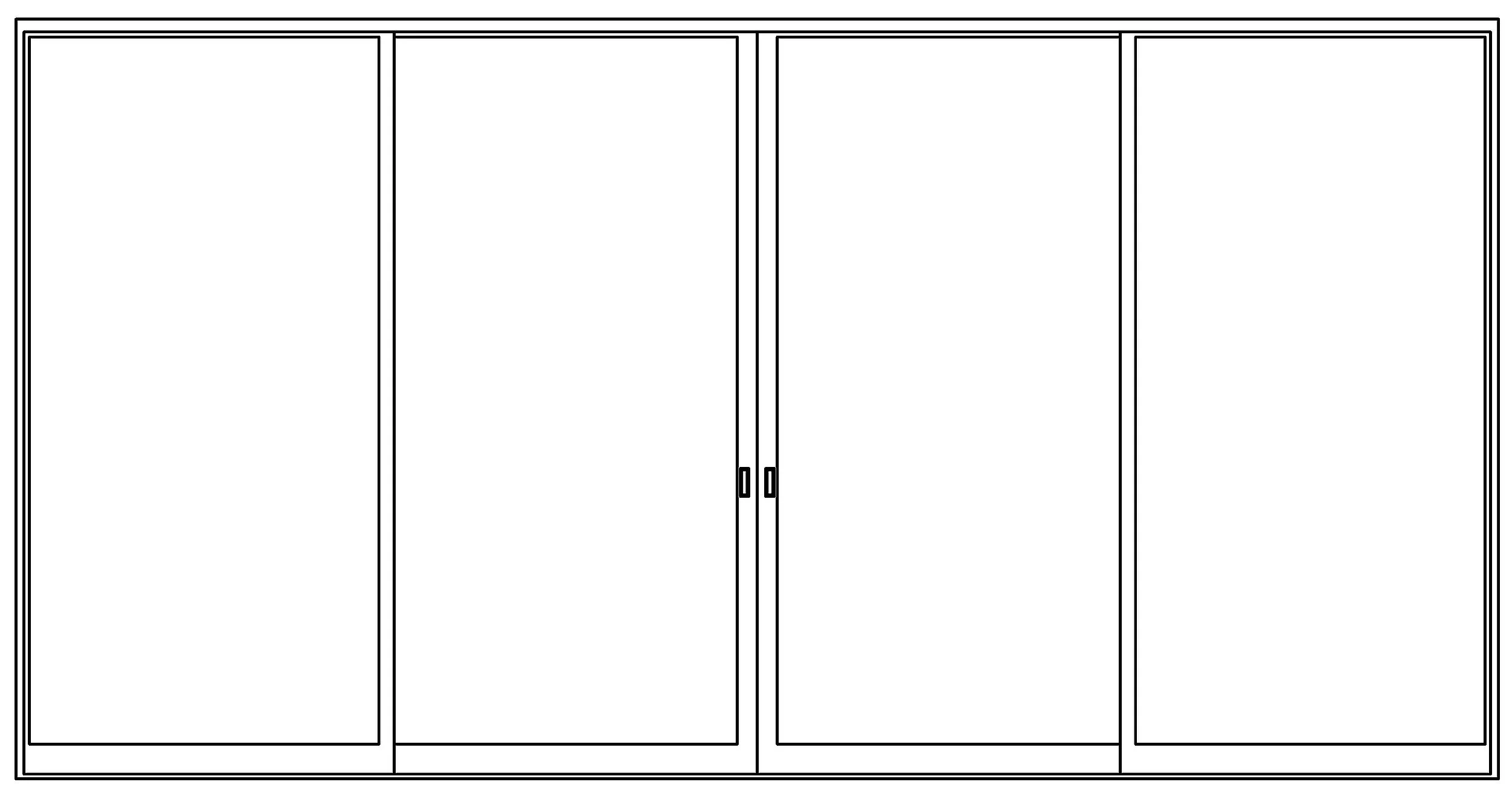

Elevations

Every opening drawn to scale with operation, handing, hardware location and rough opening sizes, so framers and installers build it right the first time.

02

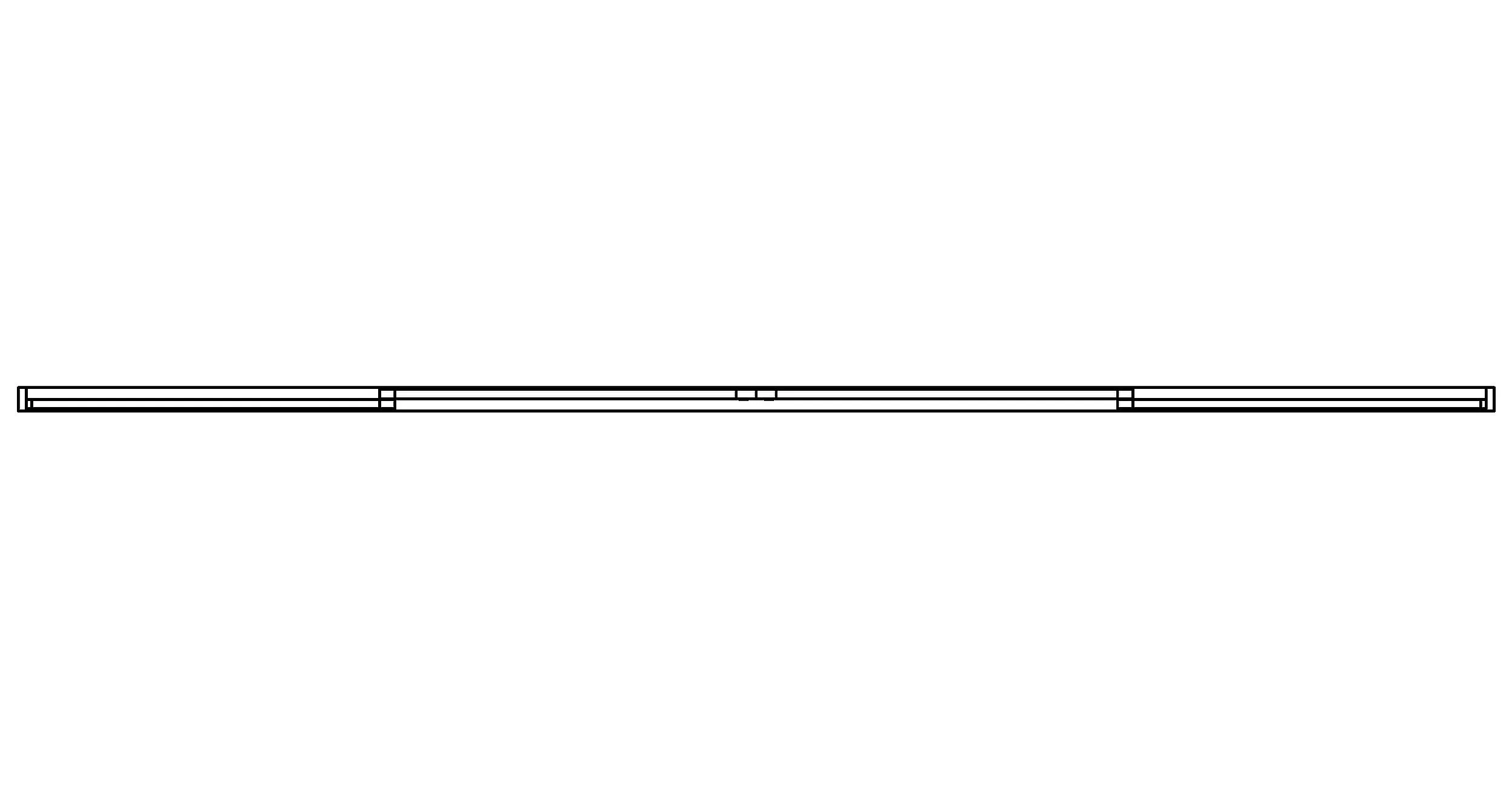

Floor plans

Where each unit lands on the finished floor, including multi-slide stacking, pocket doors and corner units.

03

Product details

Full-scale sections of frames, sills and mullions from the manufacturer's profiles, so architects and owners approve what they'll actually get.

04

Installation details

How each unit is fastened, flashed and sealed into the wall assembly.

05

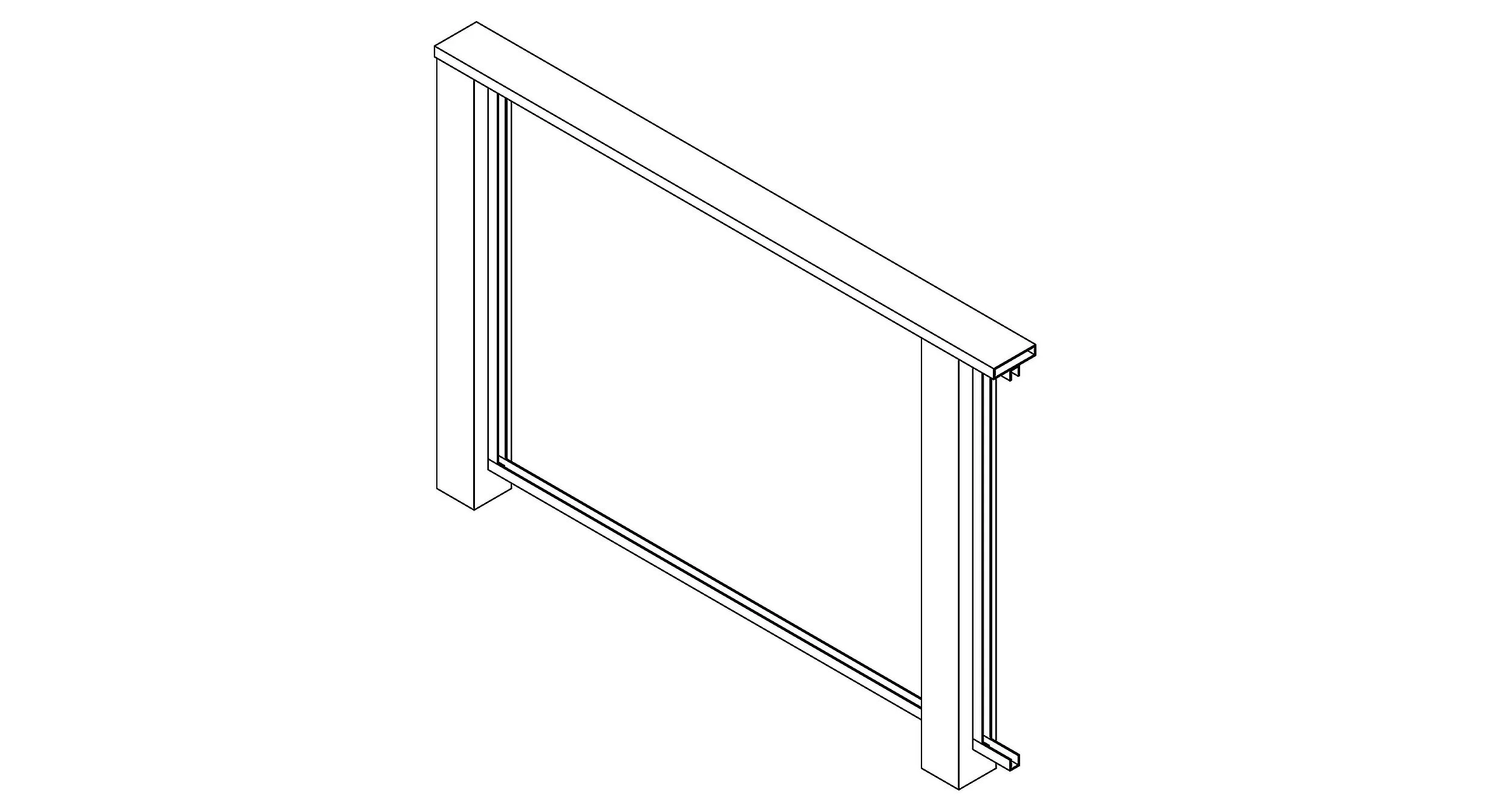

Custom applications

Unusual openings, mixed systems or one-off glazing, drawn so everyone agrees on it before anything is ordered.

06

Your title block or mine

Sets go out on the JT Sketch title block, or on yours if you want drawings that match your company's submittals.

Working with another manufacturer? Send the product catalog or spec sheets and I'll draft to them.

What I need to quote
  • Architectural set (PDF)
  • Window and door schedule
  • Manufacturer, system and series
  • Your submittal date
What you get
  • First draft in 3–5 business days, depending on size
  • Two rounds of revisions included
  • Submittal-ready PDF set
  • DWG files available on request

Have a package going out to bid?

Send the plans and I'll reply within 24 hours with a price and a date.

Request a Quote
